PE Pipe Extrusion Line with 315mm - 630mm Pipe Diameter Range Featuring Single-Screw Extruder and Integrated Gearbox

Product Categories
Zhangjiagang Langbo Machinery Co. Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

PE Pipe Extrusion Line with 315mm - 630mm Pipe Diameter Range Featuring Single-Screw Extruder and Integrated Gearbox

Packages : Exported standard packing

Max Capacity : 1000 kg/hr

Supply Ability : 15 SETS PER MONTH

Forming : Vcauum

Model Number : LB-65/33

Pipediameterrange : 315mm - 630mm

Screwdiameter : 45mm - 120mm

MOQ : 1 SET

Delivery Time : 45 WORKING DAYS

Screw Design : Single-screw

Motor : DC motor

Payment Terms : L/C,T/T

Gearbox : Integrated gearbox

Electrical Components : Schnider

Price : Negotiation（USD,EUR）

Output : 350Kg/H

Certification : CE / ISO

Extruder Screw Diameter : 120mm

Brand Name : LB

Outlet : single outlet

Place of Origin : ZHANGJIAGANG

Operator : Just One Persone

Packaging Details : NORMAL PACKAGE

Contact Now

PE Pipe Extrusion Line
Our PE Pipe Extrusion Line for large diameter pipes delivers exceptional precision with minimal scrap rates. This multi-layer pipe production system utilizes advanced co-extrusion technology to optimize material usage and create pipes with enhanced functional characteristics.
Technical Advantages
  • Cost-effective material utilization through recycled material integration in middle layers
  • Versatile layer configurations including PP-R and glass fiber reinforcement
  • Enhanced pipe performance for specialized applications like hot water supply
  • Superior chemical resistance and mechanical strength
Application Scenarios
PE pipe extrusion lines are engineered for diverse applications including water supply systems, gas distribution, agricultural irrigation, drainage systems, cable conduits, and industrial piping. These systems process PE100/PE80 materials across diameter ranges of 16-1200mm, ensuring consistent quality while meeting ISO and ASTM standards for infrastructure and industrial applications.
Technical Specifications
Model Pipe Diameter (mm) Extruder Extruder Power (kw) Capacity (kg/hr)
LB-63 20-63 SJ65/33 55AC 150
LB-110 20-110 SJ65/33 55AC 150
LB-160 75-160 SJ75/33 90AC 280
LB-250 90-250 SJ75/33 110DC 350
LB-315 110-315 SJ90/33 160DC 450
LB-450 160-450 SJ90/33 160DC 450
LB-630 315-630 SJ120/33 280DC 850
LB-800 500-800 SJ150/33 315DC 1100
LB-1200 710-1200 SJ150/34 400DC 1350

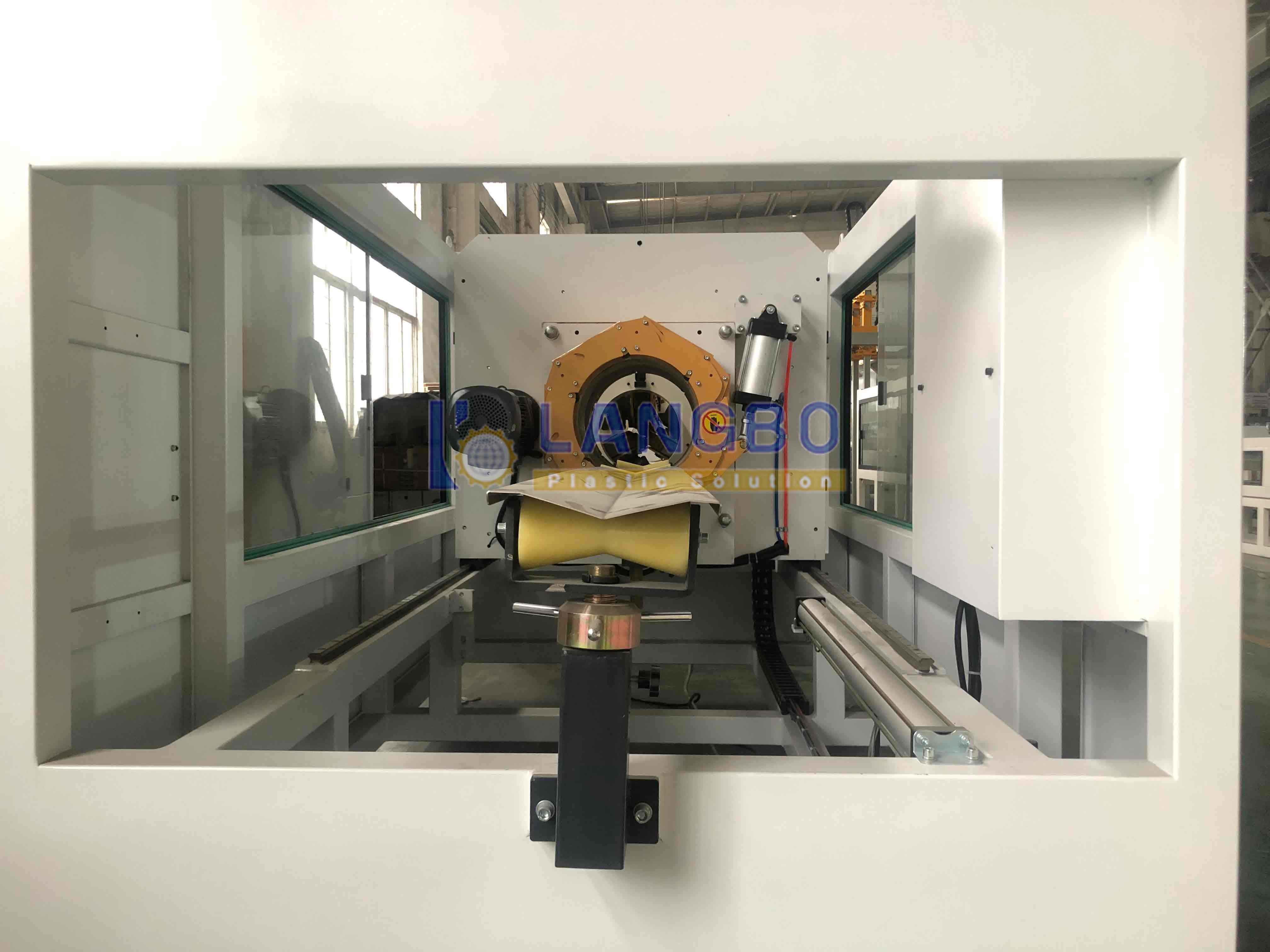

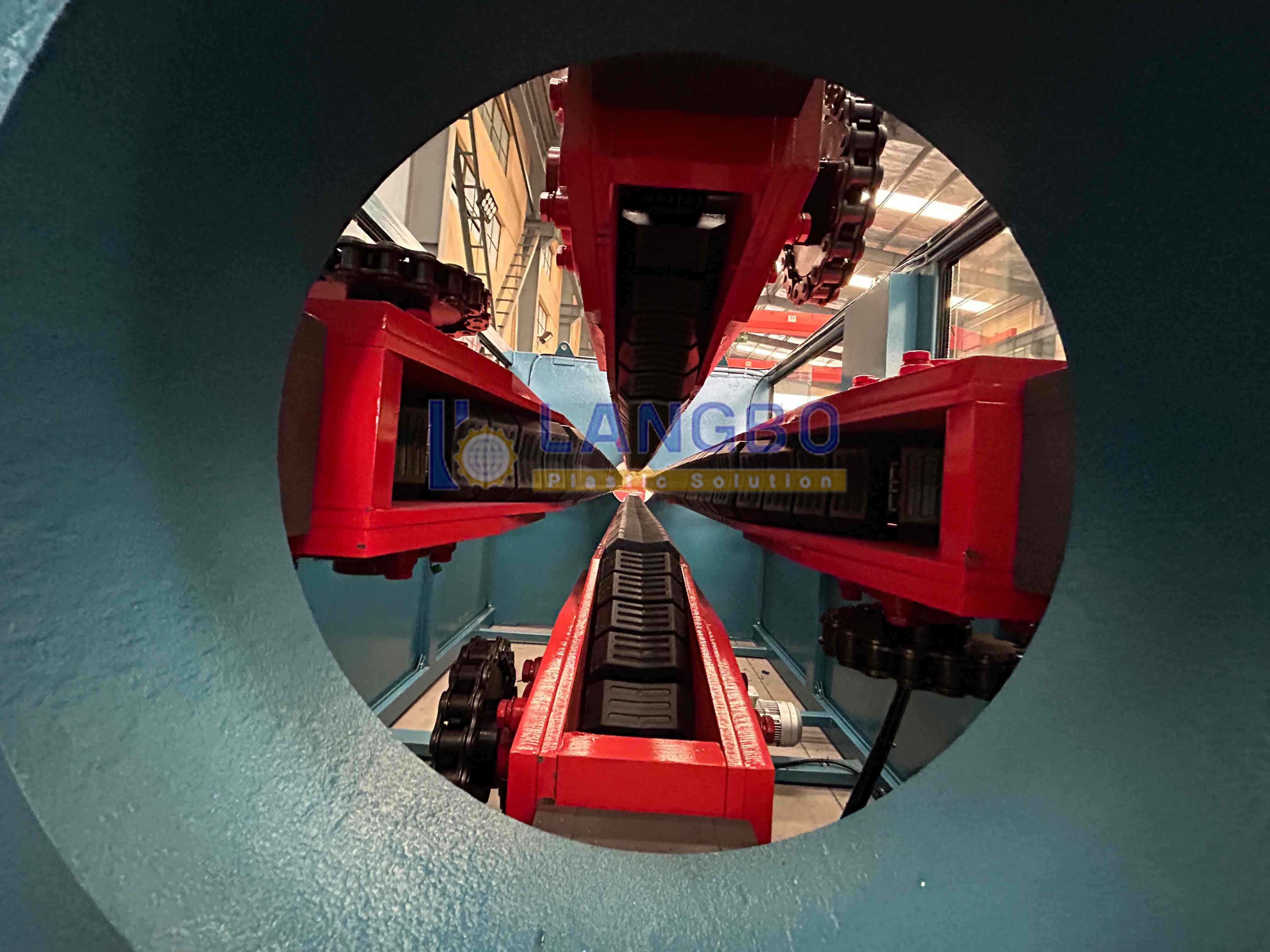

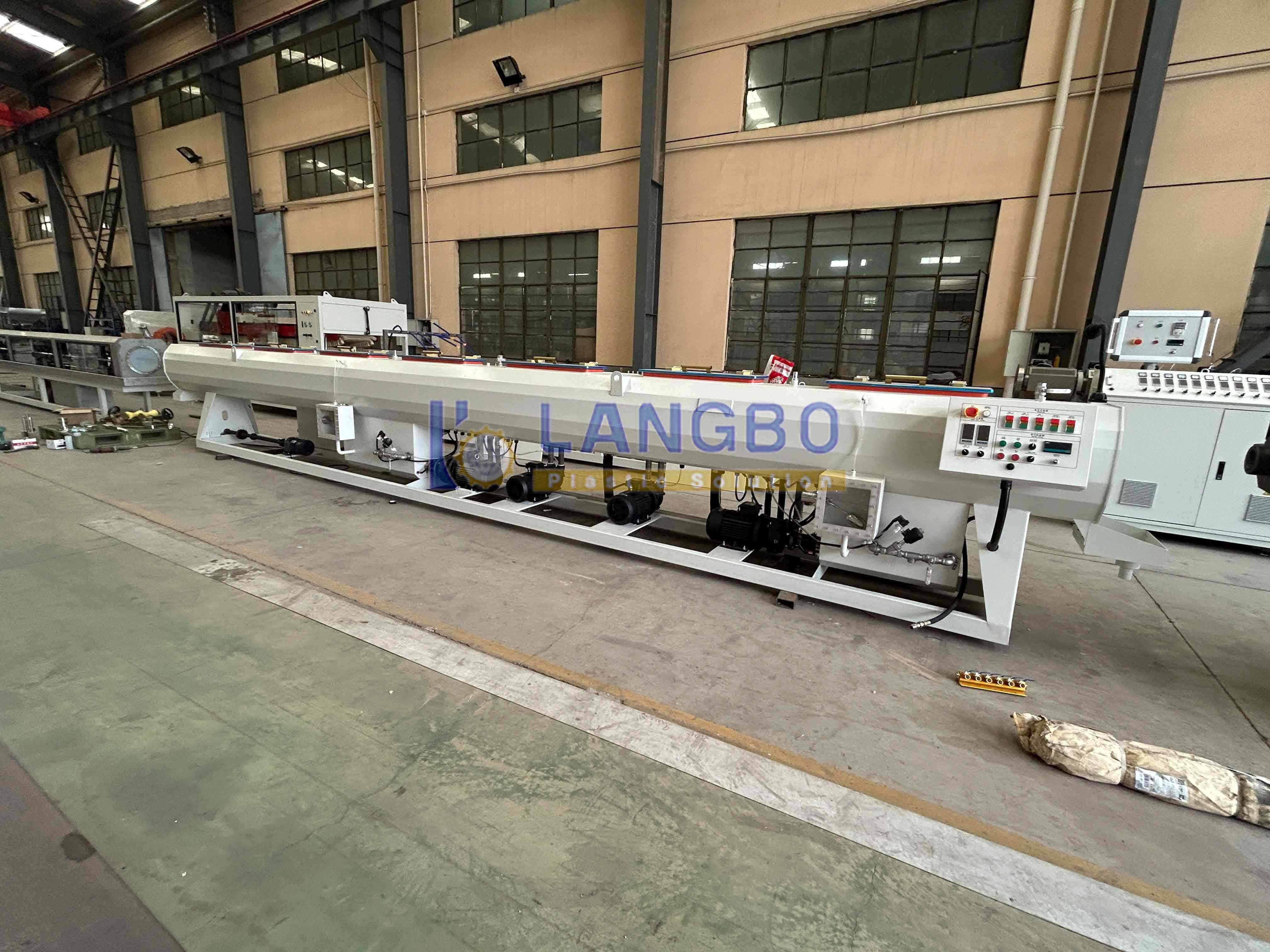

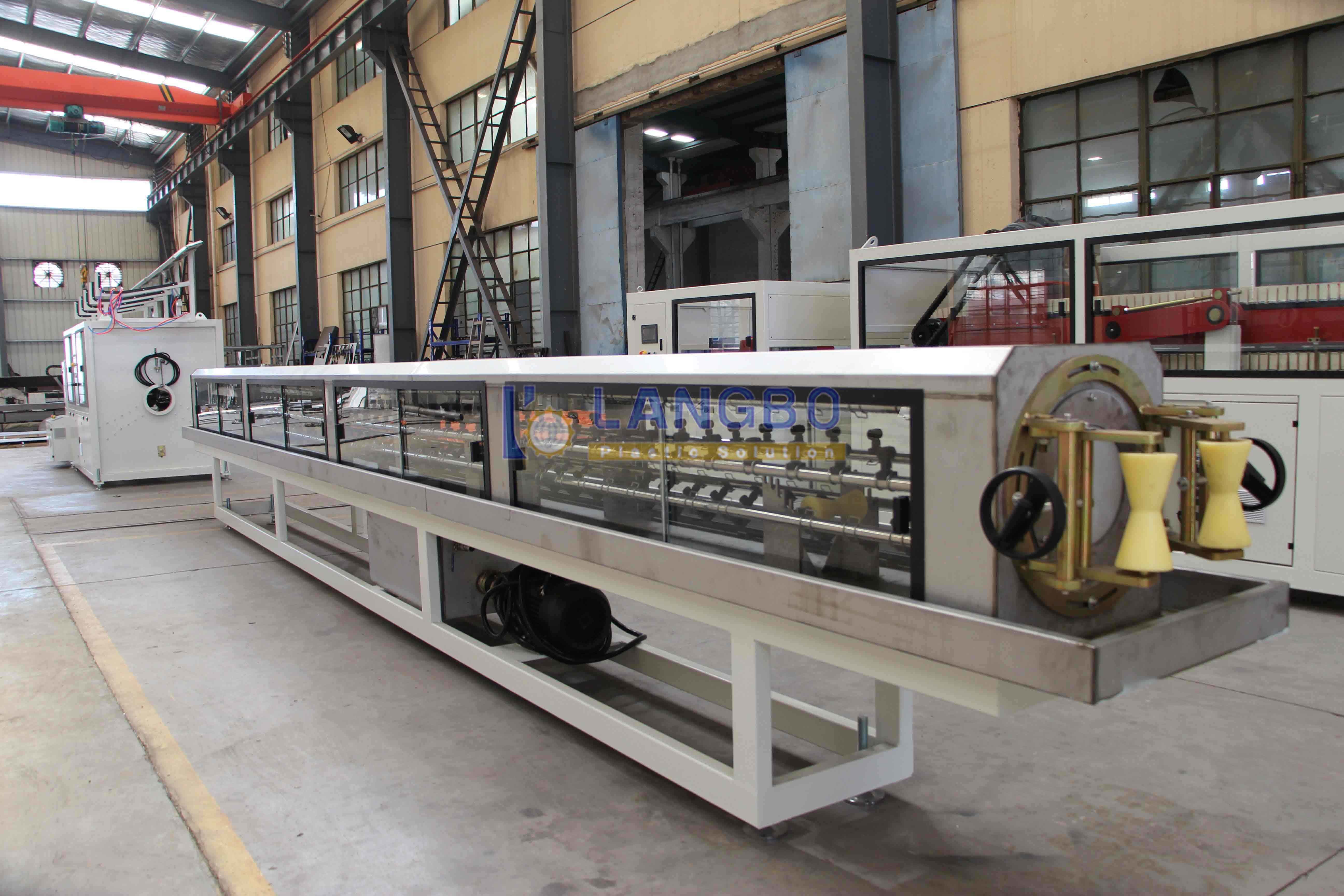

Product Gallery
PE Pipe Extrusion Line with 315mm - 630mm Pipe Diameter Range Featuring Single-Screw Extruder and Integrated Gearbox PE Pipe Extrusion Line with 315mm - 630mm Pipe Diameter Range Featuring Single-Screw Extruder and Integrated Gearbox PE Pipe Extrusion Line with 315mm - 630mm Pipe Diameter Range Featuring Single-Screw Extruder and Integrated Gearbox PE Pipe Extrusion Line with 315mm - 630mm Pipe Diameter Range Featuring Single-Screw Extruder and Integrated Gearbox PE Pipe Extrusion Line with 315mm - 630mm Pipe Diameter Range Featuring Single-Screw Extruder and Integrated Gearbox PE Pipe Extrusion Line with 315mm - 630mm Pipe Diameter Range Featuring Single-Screw Extruder and Integrated Gearbox PE Pipe Extrusion Line with 315mm - 630mm Pipe Diameter Range Featuring Single-Screw Extruder and Integrated Gearbox PE Pipe Extrusion Line with 315mm - 630mm Pipe Diameter Range Featuring Single-Screw Extruder and Integrated Gearbox
