PVC Pipe Extrusion Line Cooling System Dimension Control Irrigation Pipe
Product Overview
We provide comprehensive plastic pipe production lines, including 16-630mm PVC/UPVC pipe lines, 16-1200mm HDPE pipe lines, and specialized lines for PP/PPR pipes, HDPE/PP/PVC double-wall corrugated pipes, and single-wall corrugated pipes. These production lines manufacture pipes for diverse applications including water supply, drainage, gas supply, and conduit wiring.
Applications
UPVC pipes are extensively used in industrial and residential applications, including electrical conduits, water supply pipes, sewage systems, home decoration, chemical transportation, and gas distribution lines. They offer high strength, structural integrity, excellent chemical resistance, durability, thermal stability, non-toxic safety, low maintenance requirements, and cost-effectiveness.
Production Process
- PVC powder + additives
- Mixing
- Spring feeding
- Twin-screw extruder
- Mould and calibrator
- Vacuum forming machine
- Haul-off machine
- Cutting machine
- Stacker
Specifications
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
|---|
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
Component Details
Mixer: Features specialized design that reduces raw material self-friction, enhancing energy utilization efficiency. Equipped with vacuum suction loading system for low-noise, dust-free operation.
Twin Screw Extruder: Crafted with premium components for stable production, high efficiency, and long-term durability. Conical twin-screw design ensures homogeneous mixing, superior plastification, and efficient conveying.

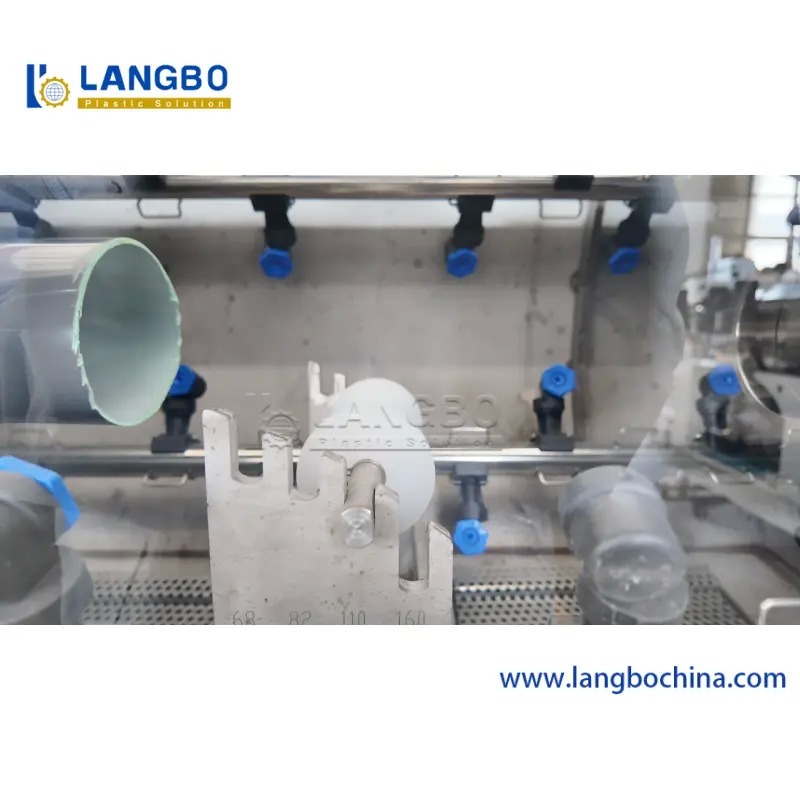

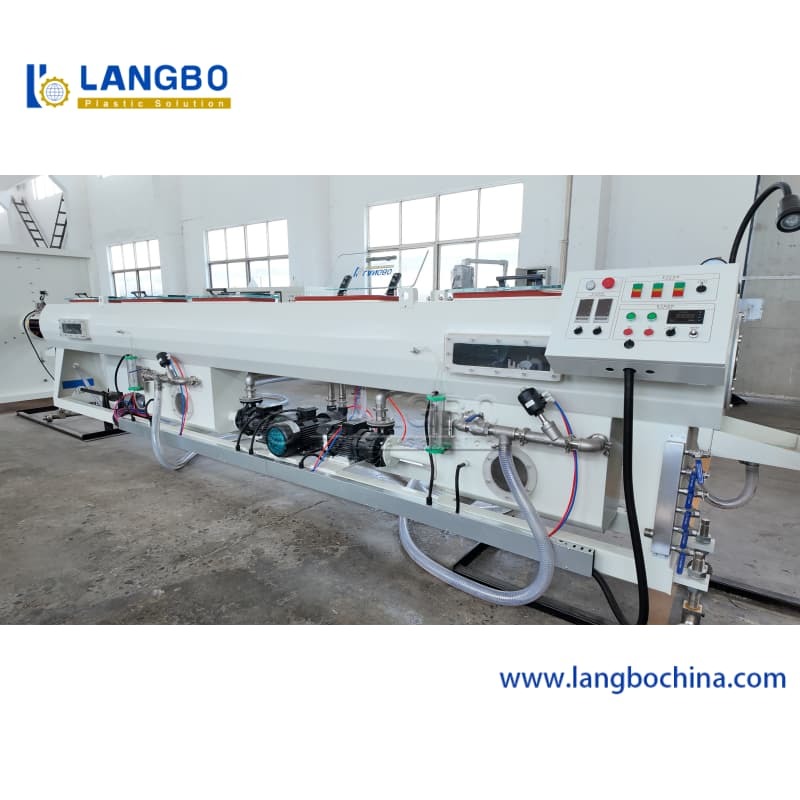

Vacuum Calibration & Cooling: Two-chamber vacuum calibration tank integrates vacuum calibration and cooling functions. Constructed from 304 stainless steel with high-performance vacuum system for precise pipe sizing.
Haul-off Unit: Equipped with three crawler track belts for stable pipe movement. Adjustable general control allows customized hauling modes to meet specific production requirements.
Cutting Unit: High-precision encoder ensures accurate and stable cutting lengths. PLC-controlled system supports manual operation for application-specific cutting.
Technical Features
- PLC control with high degree of automation
- Special screw and barrel design for optimal performance
- Compound spiral engine head eliminates material memory function
- Easy operation with minimal workforce requirements
- Convenient maintenance access
Delivery Information
- Delivery: 30 days after order confirmation
- Warranty: 12 months
- Payment: T/T 30% in advance, T/T 70% before delivery
- Packing: Standard export wooden case
Our Services
- One-year guarantee for entire machine
- 24-hour technical support
- Overseas installation & commissioning by our engineers
- Maintenance guidance and competitively priced spare parts after warranty
- Comprehensive operator training services
Frequently Asked Questions
Are you a trading company or factory? Can I visit your facility?
We are a direct manufacturer. Factory visits are welcome at our production plant in Zhangjiagang, Jiangsu Province. Pick-up service is available for nearby visitors.
How to build trust with Langbo?
We provide working videos demonstrating machine performance in various countries. For offline contact, factory visits allow face-to-face discussions about our plastic extrusion capabilities.
Is shipping cost included in the quotation?
Quotations typically include FOB Shanghai terms. Shipping costs fluctuate based on carrier and timing. We can assist with obtaining current shipping prices.
What happens after order confirmation?
Configuration confirmation → Proforma invoice signing → 30% prepayment → Test running → Machine condition confirmation → 70% payment → Delivery preparation → Shipping → On-site commissioning → Training → Handover confirmation → One-year guarantee → Lifetime support.
What payment methods do you accept?
T/T, D/P, Letter of Credit, and cash transactions.
How do you guarantee machine quality?
We provide one-year guarantee and lifetime technical support. Customers can inspect machines during in-house test running, with immediate optimization of any identified issues.
Do you have CE Certification?
Yes, both our extrusion machines and plastic recycling machines are CE certified.
What is your typical delivery time?
Usually 45 days, with exact timing specified in the contract.
