PVC Waterstop Extrusion Line with PLC Touch Screen Control Adjustable Speed up to 10 m/min and Stainless Steel Mold

MOQ : 1 SET

Delivery Time : 45 WORKING DAYS

Formula : offer with machine together

Productname : PVC Profile Extrusion Line

Model Number : LB-65/28

Cutter : SAW CUTTER

Payment Terms : L/C,T/T

Frame Wide : 300mm wide

Extrusionspeed : Adjustable, up to 10 m/min

Price : Negotiable(USD,EUR）

Warranty Time : 18 Months

Supply Ability : 15 SETS PER MONTH

Control : PLC TOUCH SCREEN

Automationlevel : Semi-automatic to fully automatic

Brand Name : LB

Length : 25m

Packaging Details : STANDARD PACKAGE

Email : hym@polytech.net.cn

Certification : CE,ISO9001

Mold : stainless steel

Place of Origin : ZHANGJIAGANG

Pipe Diameter : 75-250

Contact Now

PVC Waterstop Extrusion Line For Hydraulic Engineering Waterproofing System
This PVC profile production line is specifically engineered for manufacturing punched hole plastic PVC waterstops and various other PVC profiles including window & door profiles, ceiling panels, and trunking. Custom solutions and molds are developed based on specific drawing sections.
Processing Process
The complete production flow: PVC powder + additive → mixing-material feeder → twin screw extruder → mold and calibrator → vacuum forming table → haul-off machine → cutting machine → discharge rack.
Key Features
  • Conical twin screw extruder suitable for both PVC powder and granules
  • Integrated degassing system for excellent material plasticization
  • High-speed mold design for increased productivity
  • Double strand mold configuration for PVC waterstop profile production
  • Optimized channel design ensuring high flow performance
  • Advanced plate mold producing profiles with high precision
Component Details
Single Screw Extruder Machine
Crafted with top brand components to ensure production stability, efficiency, and machine durability. Features international standard single screw and barrel with strong rigidity for long service life and superior plasticizing effect.
Mould
Double strand mold configuration significantly improves productivity. Optimized channel design ensures high flow performance while advanced plate mold technology delivers profiles with exceptional precision.
Calibration Table
Features stable steel frame construction with SUS 304 stainless steel body. Includes multi-dimension position adjustment system with precisely laid out water pumps and vacuum calibrators for rapid shaping and cooling of PVC profiles.

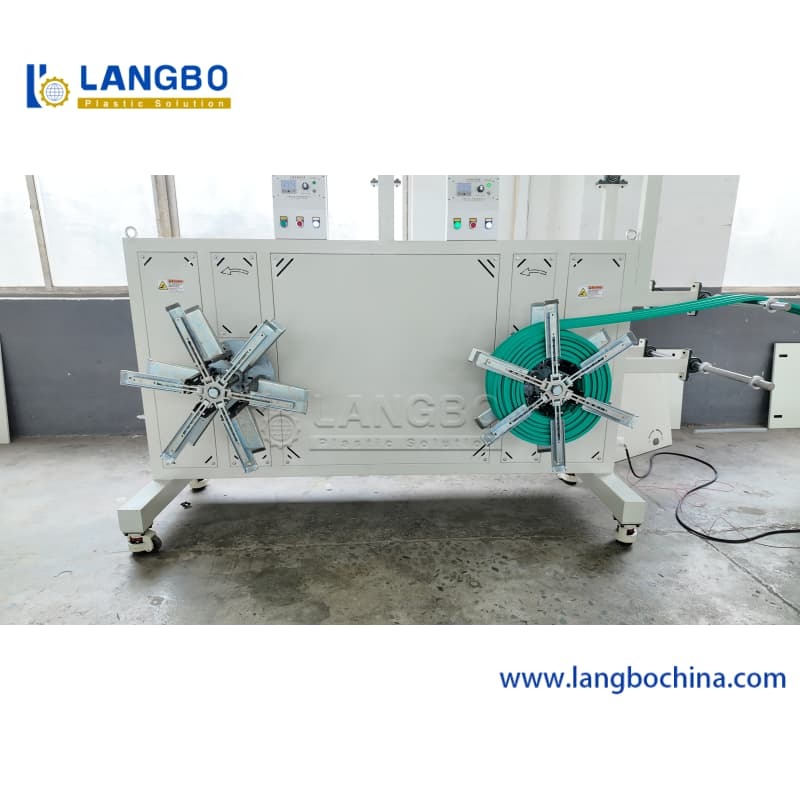

Coiling Unit
Automatically winds finished waterstop strips into neat, uniform rolls. Provides consistent tension control during winding to prevent deformation or stretching. Features adjustable coil diameter and winding speed for improved efficiency and convenient storage and transport.
Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25
Machine Photos
PVC Waterstop Extrusion Line with PLC Touch Screen Control Adjustable Speed up to 10 m/min and Stainless Steel Mold

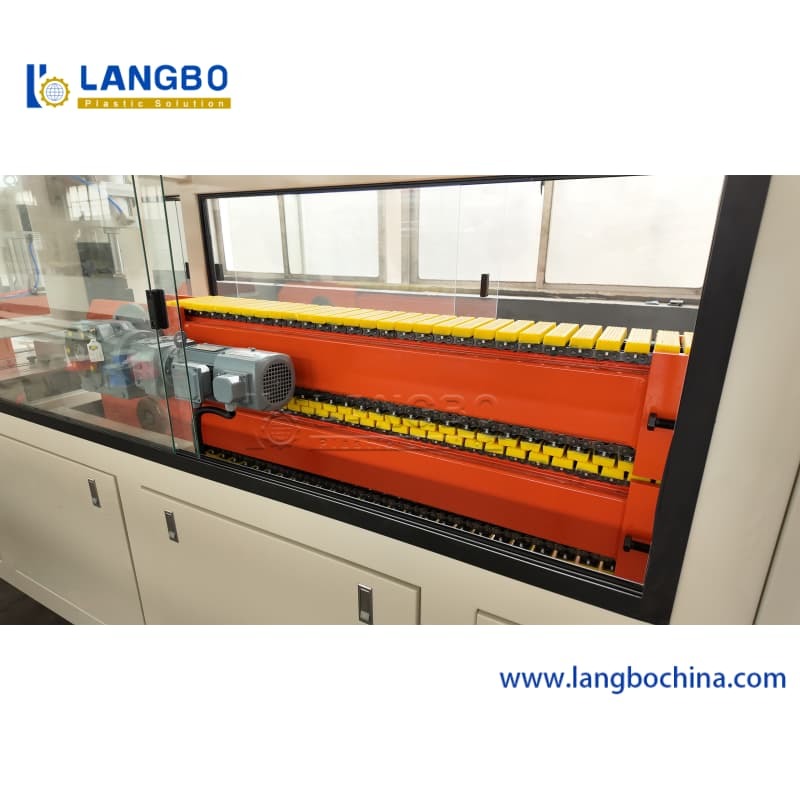

Production Line Overview
PVC Waterstop Extrusion Line with PLC Touch Screen Control Adjustable Speed up to 10 m/min and Stainless Steel Mold
Extrusion Line Components
PVC Waterstop Extrusion Line with PLC Touch Screen Control Adjustable Speed up to 10 m/min and Stainless Steel Mold
Control System
PVC Waterstop Extrusion Line with PLC Touch Screen Control Adjustable Speed up to 10 m/min and Stainless Steel Mold
Extrusion Process
PVC Waterstop Extrusion Line with PLC Touch Screen Control Adjustable Speed up to 10 m/min and Stainless Steel Mold
Profile Manufacturing
PVC Waterstop Extrusion Line with PLC Touch Screen Control Adjustable Speed up to 10 m/min and Stainless Steel Mold
Finished Products
