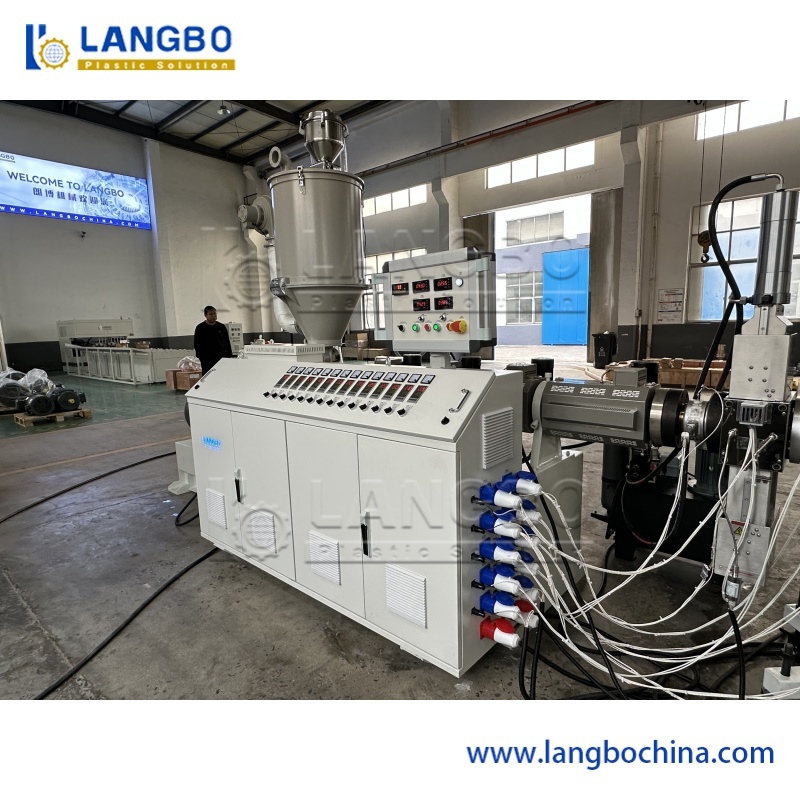

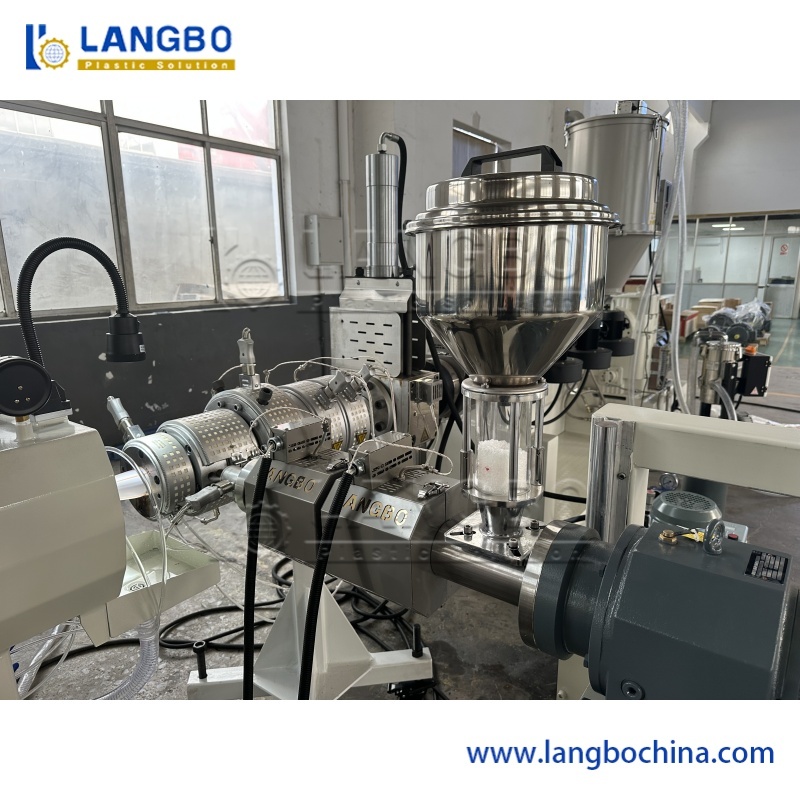

Durable PPR Pipe Extrusion Line With Automatic Meter Counting For 20mm - 110mm Diameter And 120kg/h Output

Model Number : LB-65/33

Screw And Barrel : Single screw

Supply Ability : 15 SETS PER MONTH

Production Speed : 12m/min; 20m/min; 28m/min

Brand Name : LB

Extruder Model : 6533

Payment Terms : L/C,T/T

Extruderscrewdiameter : 45mm - 65mm

Price : Negotiable（USD EUR）

Cuttingmachine : Automatic cutting machine

MOQ : 1 SET

Delivery Time : 45 WOKING DAYS

Packing Method : Wooden and film packages

Weight : 4000kg

Packaging Details : NORMAL PACKAGE

Output : 120kg/h

Certification : CE/ISO

Pipediameterrange : 20mm - 110mm

Place of Origin : ZHANGJIAGANG

Coolingmethod : Water cooling tank

Contact Now

Durable PPR Pipe Extrusion Line Featuring Automatic Meter Counting For Consistent In Drinking Water Pipeline Fabrication
Product Overview

This advanced PPR pipe production line features automatic meter counting and delivers smooth inner surface finishes, specifically designed for drinking water pipeline applications.

Extrusion Process Technology

Multi-layer pipes are manufactured using sophisticated co-extrusion pipe line technology. This specialized process reduces raw material costs while creating pipes with enhanced functional characteristics.

  • Recycled materials can be utilized as the middle layer in PE thick wall pipes for cost optimization
  • For hot water supply applications, the production line incorporates PP-R layers with additional structural layers including glass fiber for superior performance
Complete Production Line Components
  • Single screw extruder
  • Co-extruder: For manufacturing marking lines on pipes or creating multi-layer pipes
  • Die head
  • Vacuum tank: Designed with single or double vacuum chambers based on diameter requirements
  • Cooling tank: Configured with one, two, or three tanks depending on diameter
  • Haul-offs: Available in double, three, four, six, eight, ten, or twelve haul-offs configurations based on diameter
  • Cutter: Options include no-scraps cutter or planetary cutter designs
  • Coiler/Tipping chute
Technical Specifications
Model Pipe Diameter (mm) Extruder Extruder Power (kw) Capacity (kg/hr)
LB-63 16-63 SJ65/33 55AC 150
LB-110 20-110 SJ75/33 75AC 180
