PVC Pipe Making Machine Automatic Solution For Residential Plumbing Pipe

A PVC Pipe Extrusion Line is a continuous production system designed to manufacture PVC pipes for applications such as water supply, drainage, sewage systems, agricultural irrigation, and electrical conduit protection.

The production line integrates extrusion, vacuum calibration, cooling, hauling, cutting, and control systems to convert PVC raw materials into pipes with defined diameters, wall thicknesses, and surface requirements.

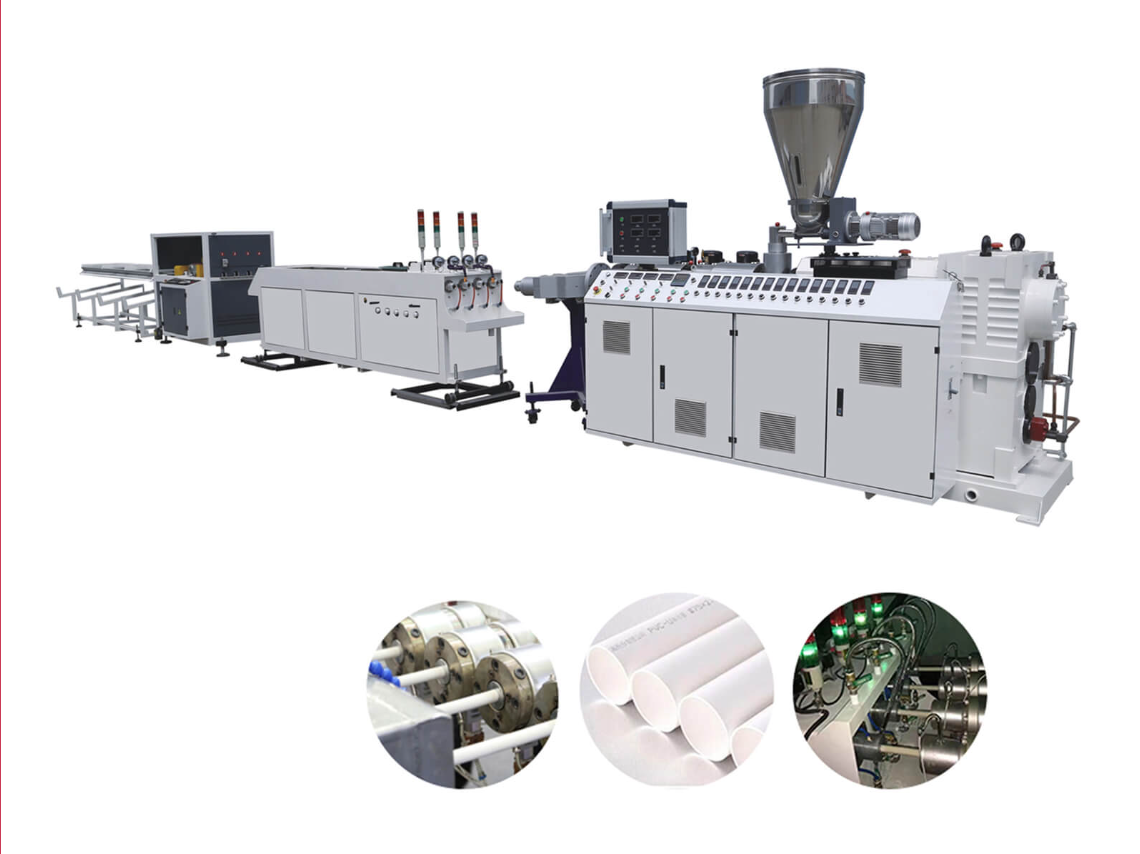

LangBo PVC Pipe Extrusion Line is configured according to pipe size, material requirements, and application conditions. Typical configurations include a conical twin screw extruder, vacuum calibration tank, cooling system, haul-off unit, cutting unit, and PLC control system.

The equipment can be applied for PVC, UPVC, and CPVC pipe production, covering common pipe diameter ranges from small-diameter conduit pipes to large-diameter drainage pipes.

Problem: Pipe Dimension Variation During Extrusion

PVC pipe manufacturers often face challenges related to diameter deviation, uneven wall thickness, and inconsistent pipe shape during continuous production.

These issues may affect pipe connection, installation performance, and compliance with application requirements.

For example, drainage pipes require controlled outer diameter and roundness, while electrical conduit pipes require accurate dimensions for cable protection systems.

The dimensional quality of PVC pipes is influenced by several production factors:

• Melt Temperature Variation - PVC material requires suitable plasticizing conditions during extrusion. Temperature fluctuations can affect melt flow behavior and pipe forming conditions.
• Calibration Conditions - After extrusion, the hot pipe enters the vacuum calibration tank. The vacuum sizing process helps define the pipe diameter and shape before cooling.
• Cooling Process Control - Uneven cooling may cause shrinkage differences between different areas of the pipe wall.
• Extrusion and Haul-Off Synchronization - The extrusion speed and pulling speed need to work together to maintain consistent pipe forming conditions.

LangBo PVC Pipe Extrusion Line provides a complete production solution by combining mechanical design and process control.

Twin Screw Extrusion System

The conical twin screw extruder is designed for PVC material processing. It provides material mixing, plasticizing, and continuous melt conveying before the die forming process.

Vacuum Calibration and Cooling System

The vacuum calibration tank shapes the hot pipe after extrusion. The cooling system gradually reduces pipe temperature to support dimensional control during production.

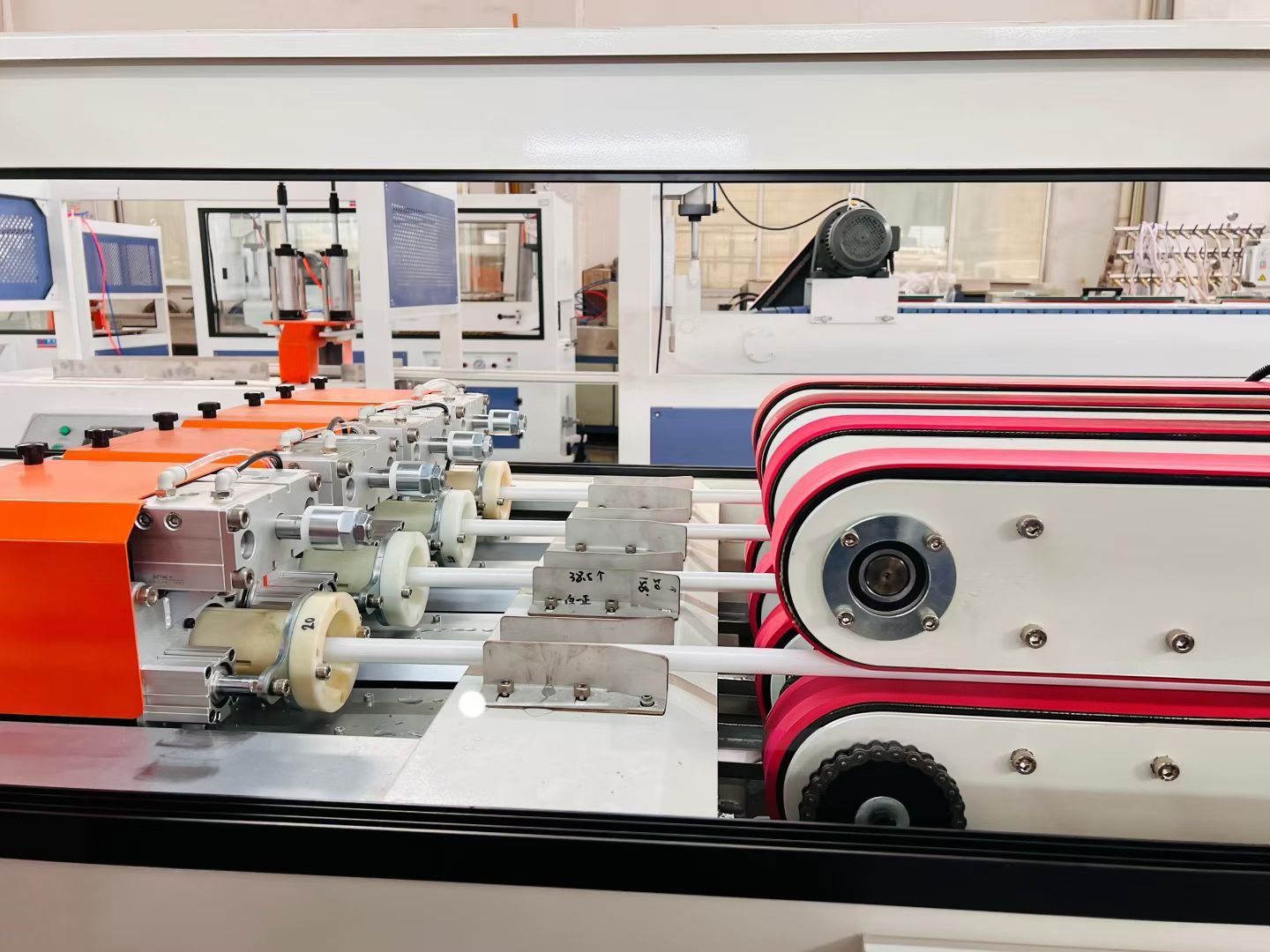

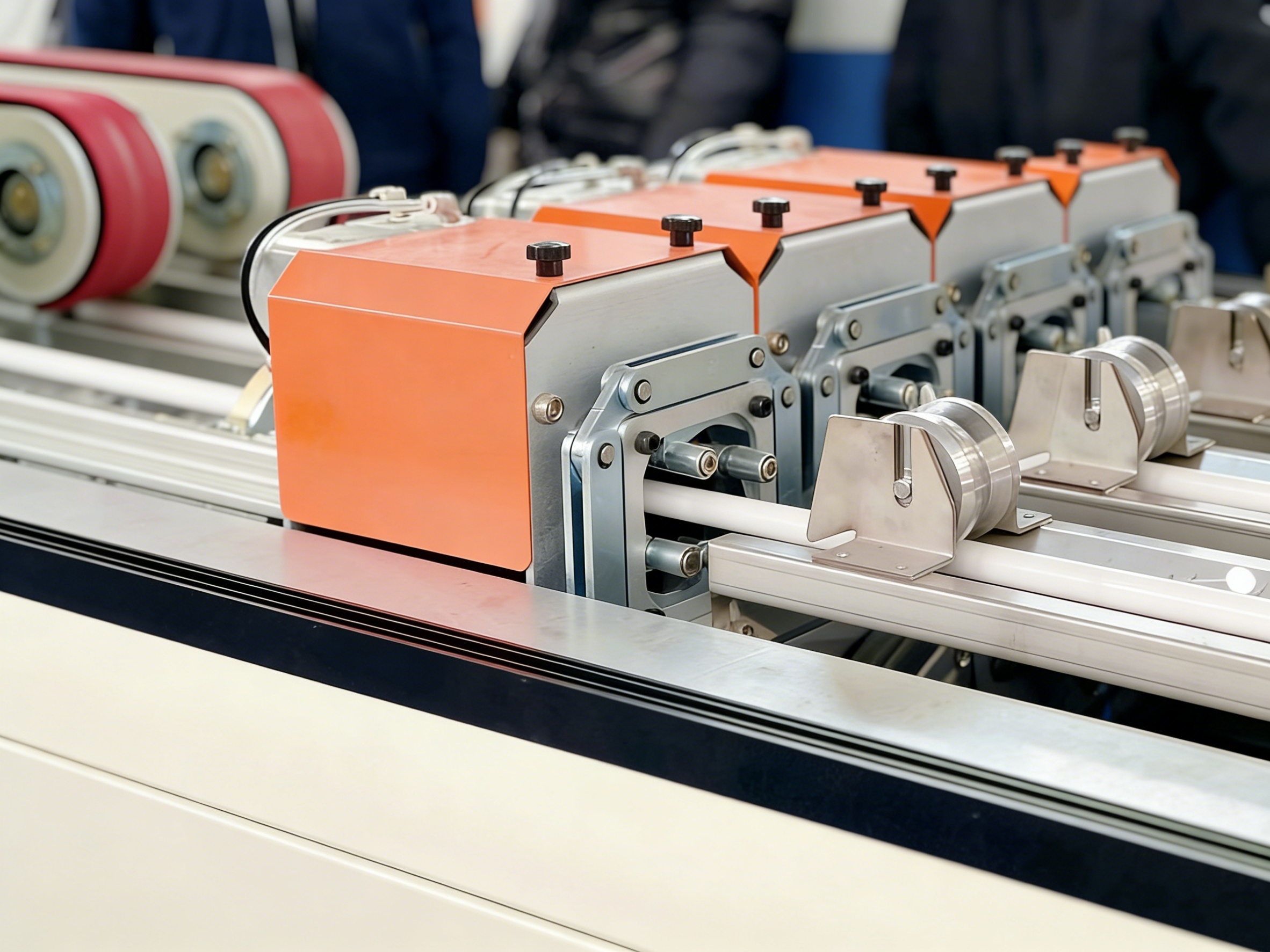

Haul-Off and Cutting System

The haul-off unit maintains continuous pipe movement, while the cutting unit processes pipes according to required lengths.

PLC Control System

The control system integrates operating parameters such as extrusion speed, temperature settings, and production coordination.

• Municipal Infrastructure - PVC pipes produced by this extrusion line are commonly used for drainage networks, sewage systems, and underground pipeline projects.
• Building Water Supply Systems - PVC and UPVC pipes are widely applied in residential and commercial building pipeline systems due to their corrosion resistance and installation requirements.
• Agricultural Irrigation - PVC pipe production lines can be configured for irrigation pipe manufacturing according to farming and water distribution requirements.
• Electrical Cable Protection - PVC conduit pipes provide protection solutions for underground and building electrical installations.

The production process generally includes:

1. Material Feeding - PVC compound enters the extrusion system through the feeding unit.
2. Plasticizing and Mixing - The twin screw extruder processes the material into a uniform melt.
3. Die Forming - The molten PVC material passes through the extrusion die to form the pipe shape.
4. Vacuum Calibration - The hot pipe enters the calibration tank for sizing and shape adjustment.
5. Cooling Process - Water cooling reduces pipe temperature and supports final dimension formation.
6. Hauling and Cutting - The pipe is transported and cut into required lengths.

1. Confirm Pipe Diameter Range - Different applications require different extrusion configurations. Small diameter pipes are commonly used for conduit and building applications, while larger diameters are often used for drainage and infrastructure projects.
2. Define Pipe Application - The production requirements vary between water supply pipes, drainage pipes, electrical conduit pipes, and agricultural irrigation pipes.
3. Select Suitable Extruder Configuration - PVC material characteristics, pipe size, and production requirements influence the choice of extrusion system.
4. Consider Production Process Requirements - Manufacturers should evaluate required pipe dimensions, cooling conditions, automation requirements, and factory layout.
