Automatic PVC Pipe Belling Machine with 16–630mm Belling Range, Reduced Manual Operation, and Double Heating Oven

Delivery Time : 45 WORKING DAYS

Certification : CE ISO

Place of Origin : ZHANGJIAGANG

Supply Ability : 15 SETS PER MONTH

Item : pipe coiling machine

Oven : Two heating ovens

Application : Drain Pipe

Belling Range : 16~630mm

Capacity : 120~800kg/h

Materialcompatibility : PVC, UPVC

Model Number : LB-51/105

Brand Name : LB

MOQ : 1 SET

Payment Terms : L/C,T/T

Production Output : 120-800kg/hr

Packaging Details : NORMAL PACKAGE

Coolingmethod : Air Cooling or Water Cooling

Weight : 5000kg

Price : Negotiable（USD EUR）

Motorpower : 3kW to 7.5kW

Contact Now

PVC Pipe Belling Machine 16–630mm With Reduced Manual Operation

Product Overview

Pipe Belling Machine For Rectangular And R/U Type Socket Forming Applications

The SGK Series Full Automatic Plastic Pipe Belling Machine features motor control bracket height adjustment for easy operation. This advanced system is configured with material-receiving pulling device and related process interfaces that integrate seamlessly with the main machine, enabling both collaborative and standalone operation.

Key Features

Horizontal pipe movement ensures stable, accurate actions that prevent pipe damage
Infrared ray heating system with double-heating furnace configuration
Each heating furnace equipped with central heating furnace core
Expansion tube head shaping method for precise nozzle dimensions
Control panel includes conversion switches for expansion solvent plug (direct type) and expansion flexibility sealing washer type plug (R type)
Main electric control components utilize imported parts for stable, reliable system performance

Technical Specifications

Pipe Expand Range (Outer Diameter)	Φ 20-630mm
Belling Type	R type & U type
Used Oil Label	No. 40/Hydraulic Oil
Quantity of Heater	2
Highest Temperature in Heater	280°C
Gas Pressure	0.6~0.8Mpa
Water Pressure	0.2~0.3Mpa
Pipe Length	3-6m
Center Height	900mm ± 50mm
Machine Dimensions	8615 × 3125 × 2500mm

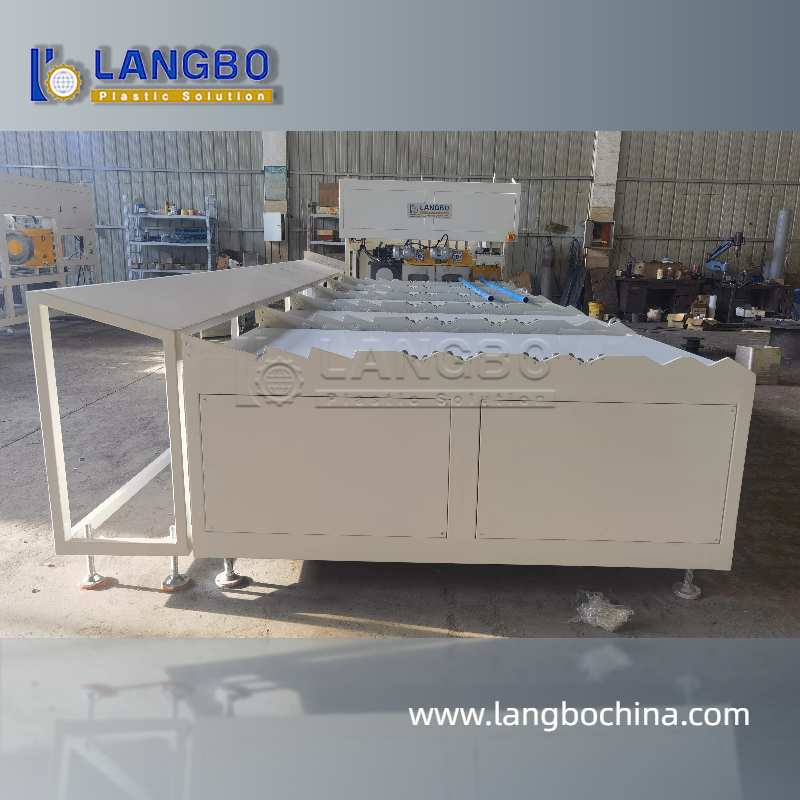

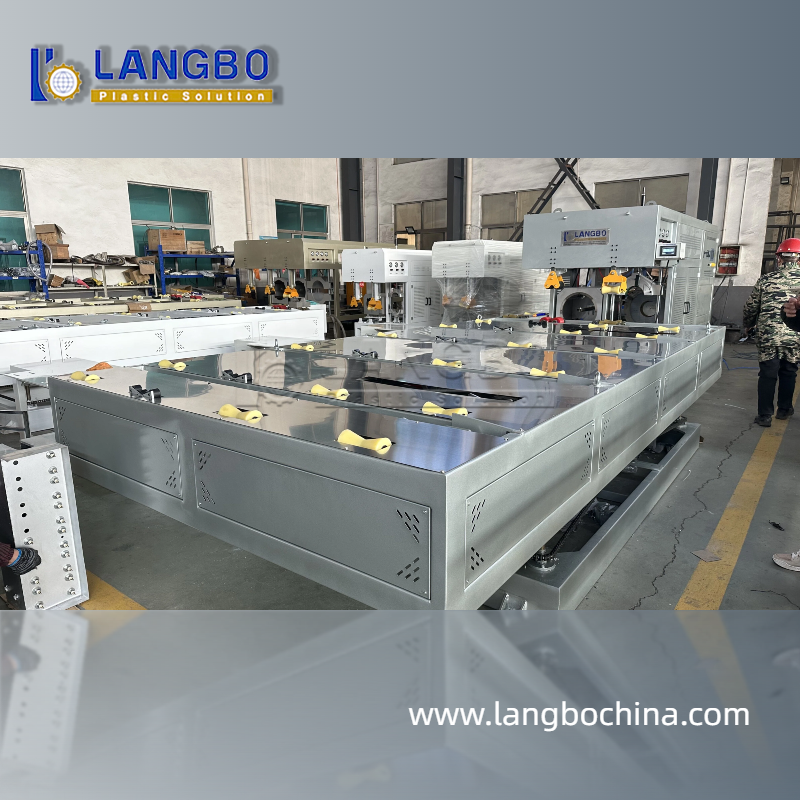

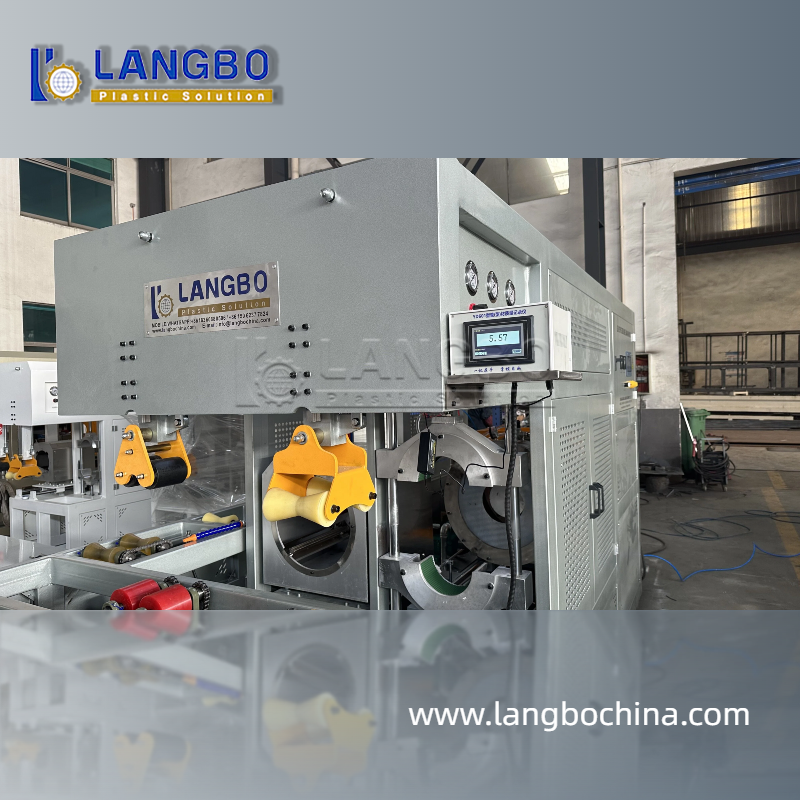

Product Gallery

Automatic PVC Pipe Belling Machine with 16–630mm Belling Range, Reduced Manual Operation, and Double Heating Oven

Product Tags:

Automatic PVC pipe belling machine

PVC pipe belling machine with double heating oven

Pipe belling machine 16-630mm range

Automatic PVC Pipe Belling Machine with 16–630mm Belling Range, Reduced Manual Operation, and Double Heating Oven Images
