Automatic Pipe Belling Machine with Infrared Ray Heating System and 16~630mm Belling Range for UPVC Pipe Production

Brand Name : LB

Model Number : LB-80/156

Place of Origin : ZHANGJIAGANG

Packaging Details : NORMAL PACKAGE

Payment Terms : L/C,T/T

Belling Range : 16~630mm

Type Of Socket : U & R TYPE

Heatingmethod : Electric Heating

Supply Ability : 15 SETS PER MONTH

Application : Used for forming bell ends on plastic pipes for easy jointing

Automatic Grade : full automatic

Delivery Time : 45 WORKING DAYS

Heatingtemperaturerange : 0-300°C

Productname : Pipe Belling Machine

Certification : CE ISO

Processed Pipe : PVC pipe

MOQ : 1 SET

Price : Negotiable（USD EUR）

Heating Method : Light heating

Main Motor Power : 18.5-90kw

Contact Now

Pipe Belling Machine With Automatic Heating And Cooling Cycle For UPVC Pipe Production

Product Overview

The SGK Series Full Automatic Plastic Pipe Belling Machine features motor control bracket height adjustment for easy operation. This advanced system is configured with material-receiving pulling device and related process interfaces that integrate seamlessly with the main machine, enabling both collaborative and standalone operation.

Horizontal pipe movement ensures stable, accurate actions that prevent pipe damage

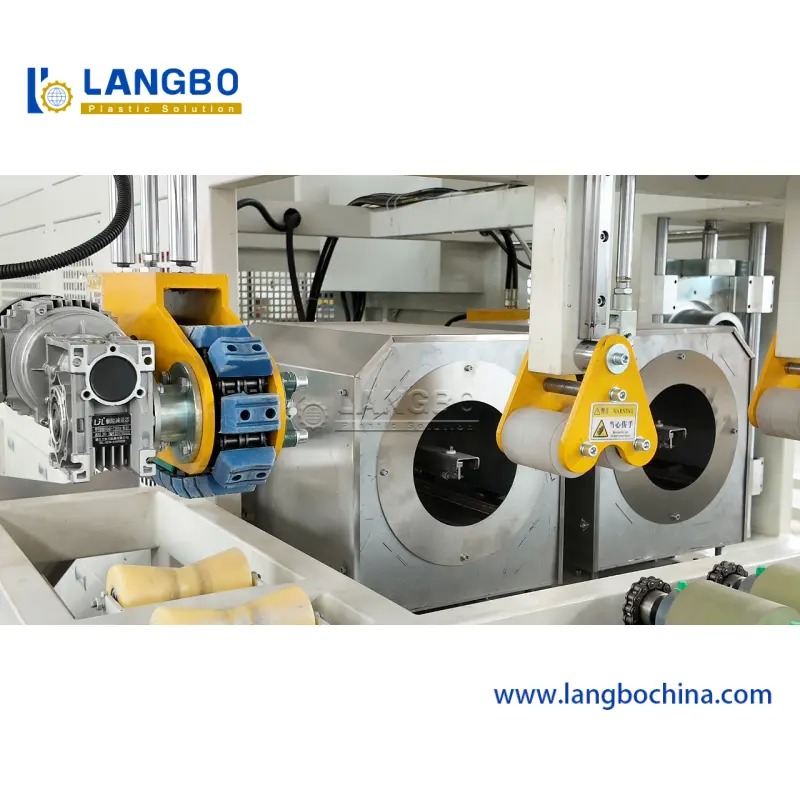

Infrared ray heating system with double-heating furnace configuration
Each heating furnace equipped with central heating furnace core
Expansion tube head shaping method for precise nozzle dimensions
Control panel includes conversion switches for expansion solvent plug (direct type) and expansion flexibility sealing washer type plug (R type)
Main electric control components utilize imported parts for stable, reliable system performance

Technical Specifications

Pipe Expand Range (Outer Diameter)	Φ 20-630mm
Belling Type	R type & U type
Used Oil Label	No. 40/Hydraulic Oil
Quantity of Heater	2
Highest Temperature in Heater	280°C
Gas Pressure	0.6~0.8Mpa
Water Pressure	0.2~0.3Mpa
Pipe Length	3-6m
Center Height	900mm ± 50mm
Machine Dimensions	8615 × 3125 × 2500mm

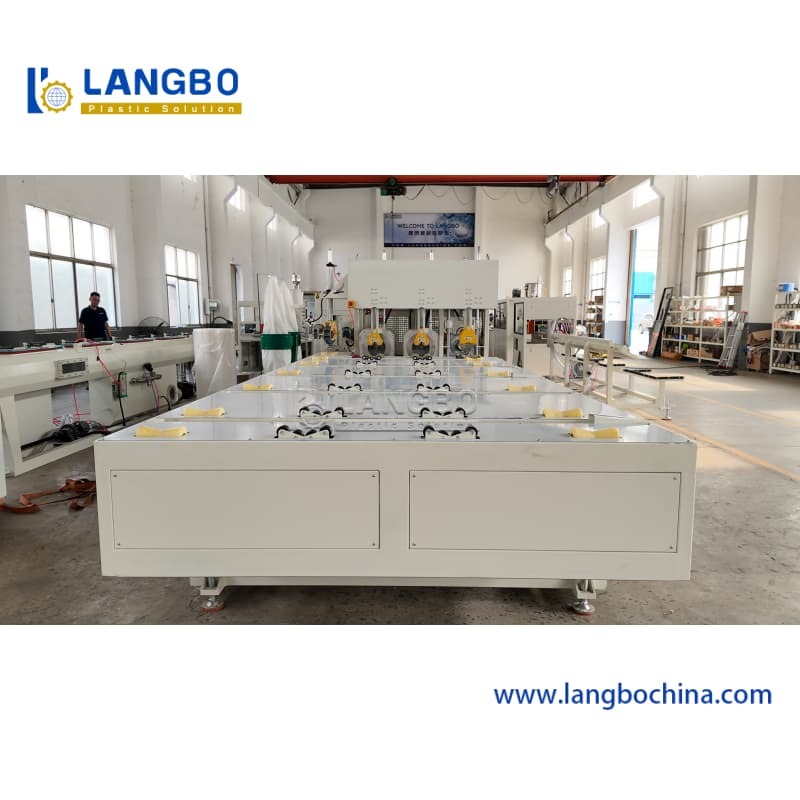

Product Gallery

Automatic Pipe Belling Machine with Infrared Ray Heating System and 16~630mm Belling Range for UPVC Pipe Production

Product Tags:

Automatic UPVC pipe belling machine

Infrared heating pipe belling machine

16-630mm range pipe belling machine

Automatic Pipe Belling Machine with Infrared Ray Heating System and 16~630mm Belling Range for UPVC Pipe Production Images
