Single Screw HDPE Pipe Extruder Machine with Omron Temperature Controller and 33:1 L/D Ratio for Fully Automatic Pipe Making

Application : pipe making

Name : PE Pipe Extrusion Line

Inverter : ABB

After-sales service provided : Engineers available to service machinery overseas,Online support,Video technical support,Field installation,commissioning and training

Brand Name : LB

Model Number : LB

Certification : CE / ISO

Place of Origin : ZHANGJIAGANG

MOQ : 1 SET

Price : negotiation

Payment Terms : L/C,T/T

Supply Ability : 15 SETS PER MONTH

Delivery Time : 45 WORKING DAYS

Packaging Details : NORMAL PACKAGE

Screw Design : Single screw

Electrical components : Schneider

Automatic grade : Fully automatic

Raw material : PE granules

Voltage : 380V 50HZ 3Phase(Customized)

Motor : Beide

Control : PLC+Touch Screen

Plastic Process : PE

Temperature contrller : Omron

Contact Now

Single Screw HDPE Pipe Extruder Machine With Omron Temperature Controller

This single screw HDPE pipe extruder machine features an Omron temperature controller and is designed for efficient production of PE, PP, and PPR pipes for various industrial applications.

Quick Details:
Complete PE, PP, PPR pipe extrusion equipment including extruder, vacuum calibrator, hauling machine, cutter, and tipping rack. Multiple hauling options available including crawler track type, three-claw type, four-claw type, and six-claw type.

Configuration

Low consumption single screw extruder with 33:1 L/D ratio
Nitriding layer thickness: 0.4-0.7mm
Stainless steel vacuum sizing water tank for enhanced durability
Customizable molds according to customer requirements

Applications

Primarily used in the production of water supply and drainage pipes for agricultural and construction applications, cable coating, and various other industrial fields.

Key Features

Multiple screw specifications available using high-quality 38CrMoAlA material with nitriding treatment
Complete set of molds for different diameter pipe production
High-level vacuum spraying and cooling system for effective pipe shaping
Stainless steel material barrel with recycling water device for optimal temperature control
Automatic length accounting device for precise cutting
Multiple cutting options: non-chipping machine, planetary cutting machine (for large diameter pipes), and saw blade cutting
Pneumatically controlled stacker with stainless steel main components

Production Line Specifications

Model	Screw Diameter	L/D Ratio	Production Speed	Machine Total Power	Machine Size
SJ65/33	65mm	33:1	25m/min	55kw	27x1.5x3
SJ60/38	60mm	38:1	35m/min	110kw	34x1.5x3
SJ75/38	75mm	38:1	45m/min	160kw	58x2.5x3

Product Images

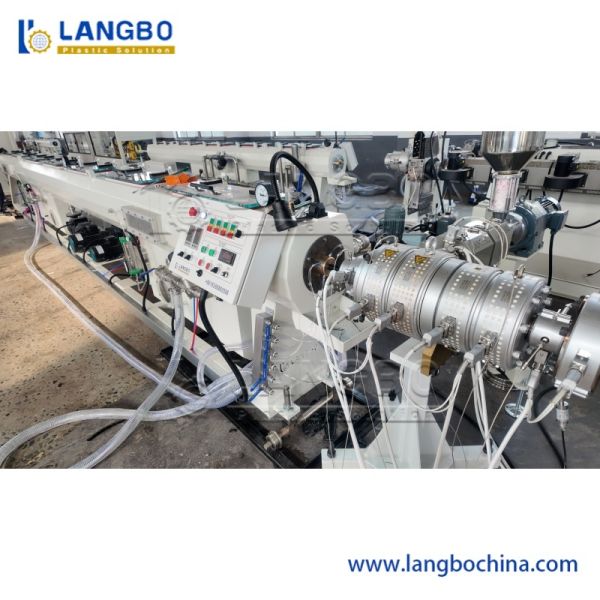

Single Screw HDPE Pipe Extruder Machine with Omron Temperature Controller and 33:1 L/D Ratio for Fully Automatic Pipe Making
